It is highly recommended to carry out thorough testing of your electronic solutions before scaling up to mass production. This approach allows for substantial cost savings.
All major companies in the electronics sector rely on specialized subcontractors for their functional testing. This is a true industrial strategy that enables them to save both time and money. Integrating an MCI bed-of-nails tester into your industrial projects is an effective solution to optimize your supply chain while ensuring cost control, product quality, and reliability.
Qu’est-ce qu’un lit à clous ?
Industrial Test Interfaces
Les interfaces de tests industrielles sont des lits à clous haut de gamme, robustes et ergonomiques. Ils sont conçus pour des tests répétés en production.
The Industrial Benefits of the Bed-of-Nails Tester
They are designed to be robust, ergonomic, and suitable for repeated testing in a production environment.

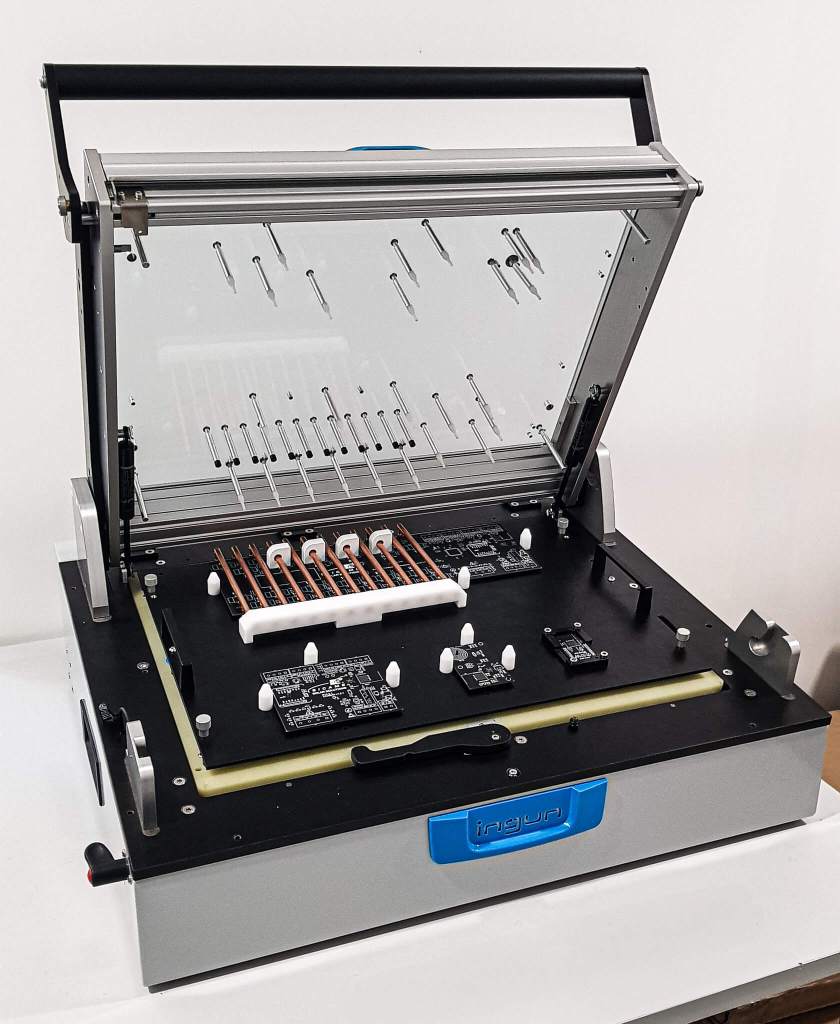

Here is how they work: the electronic boards are precisely placed on a dedicated fixture or platform. When the cover is closed, dozens or even hundreds of test probes come into contact with the test pads, vias, or connectors on the boards.
These probes are connected to a testing system (either ICT or functional), which sends electrical signals and analyzes the responses. This process allows verification of, among other things:
- Circuit continuity (no open connections)
- Values of resistors, capacitors, diodes, etc.
- Power supply voltages
- Proper operation of active components (as part of functional testing)
The test is usually triggered automatically via software, with results recorded and analyzed within seconds.
Among the key benefits of integrating a bed-of-nails tester into your industrial process, we can highlight the following:
- Cost reduction, achieved through shorter testing times, reduced manual intervention, and a significant decrease in human errors.
- A genuine increase in productivity, with tests that are fast, automatable, and easily integrated into the production line.
- Simplified maintenance: MCI’s bed-of-nails testers can be equipped with safety enclosures and are supported by a responsive after-sales service.
Furthermore, the quality of your products will be enhanced: defect detection will be more reliable, tests will become traceable and reproducible, and their standardization will strengthen the overall efficiency of your processes.
The Return on Investment (ROI) of the Bed-of-Nails Tester
The return on investment of an industrial test interface can be measured by comparing the performance of manual testing to that of a bed-of-nails tester. The time savings are significant, and non-compliance errors are greatly reduced thanks to automation, thereby minimizing risks associated with human intervention.
| Criteria | Manual Testing | Bed-of-Nails Testing |
| Test time per board | 3 to 5 minutes | 10 to 30 seconds |
| Human error rate | 5 to 10 % | < 1 % |
| Cost per test | €3 to €6 per board | €0.50 to €1.50 per board (including amortization) |
| Number of operators required | 1 operator per station | 1 operator for multiple stations |
| Test result reliability | Moderate, operator-dependent | Very high, standardized and repeatable |
| Test traceability | Low to nonexistent (depending on process) | Full traceability via software logging |
| Maintenance | No applicable | Minimal preventive maintenance |
| Productivity | Low for medium/large volumes | Very high, ideal for medium to high volumes |
| Initial investment | Low (mostly labor costs) | Medium to high (amortized over time) |
| Return on Investment (ROI) | Low to negligible | High, from 200–500 boards and up |
When and How to Adopt a Bed-of-Nails Tester?
Adopting a bed-of-nails tester becomes truly cost-effective starting from medium to large-scale production, typically around 200 to 500 units. It is essential to integrate it into a comprehensive testing strategy, as it can be tailored to your specific projects.
The bed-of-nails tester is a strategic lever for maximizing your return on investment. The only mistake would be to exclude it from your industrial approach, despite the economic and quality advantages it offers your company.
